Cross-slider

High-Rigidity Cross Slide Structure: Redefining Spatial Standards for CNC Cylindrical Grinders

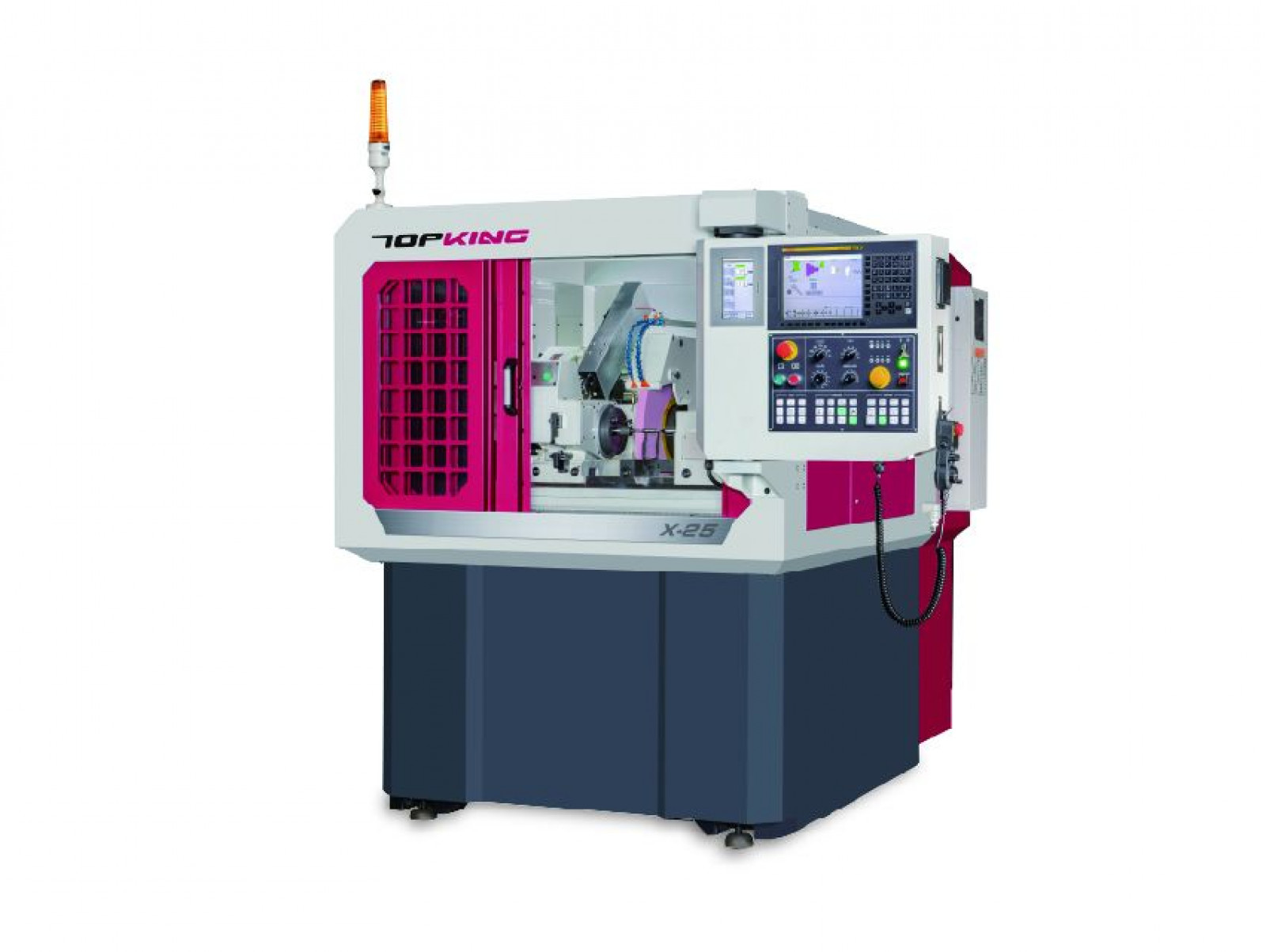

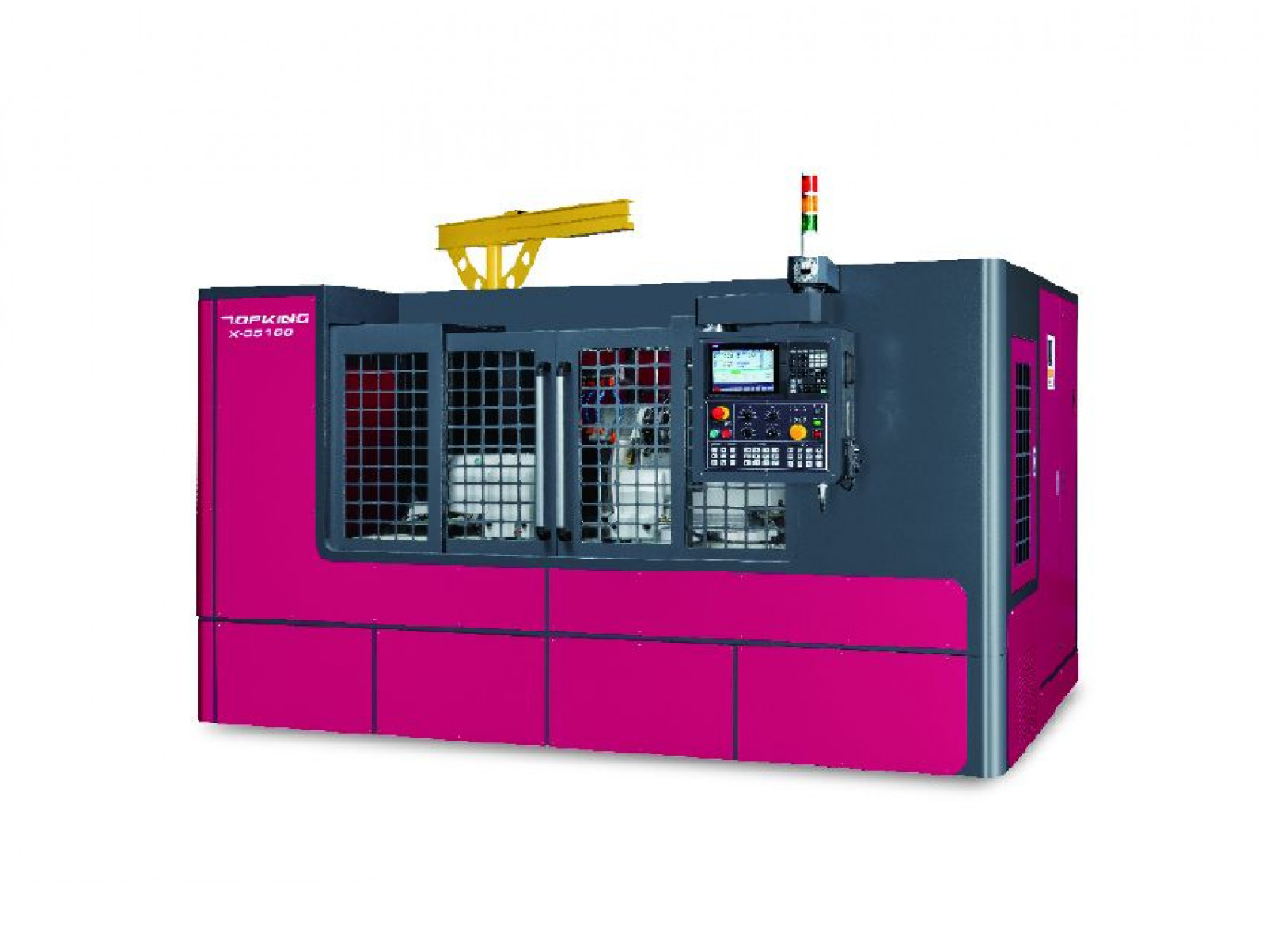

In the pursuit of ultimate precision in modern manufacturing, TOPKING’s X Series CNC Cylindrical Grinders revolutionize workspace efficiency with a unique Cross Slide design. Unlike traditional grinders with moving tables, the X Series integrates X/Z axes within the slide, keeping the worktable fixed to the base. This "traveling head" configuration reduces floor space requirements by over 30% while significantly enhancing stability and feed speeds during heavy-duty grinding. From the compact X-25 for small-scale precision to the robust X-35100 supporting workpieces up to 200kg, our machines utilize high-grade Meehanite cast iron and hardened box ways to provide a rock-solid foundation, ensuring sub-micron roundness and concentricity for every workpiece.

From Linear Motors to CAM Grinding: Smart Solutions for Aerospace and Hydraulics

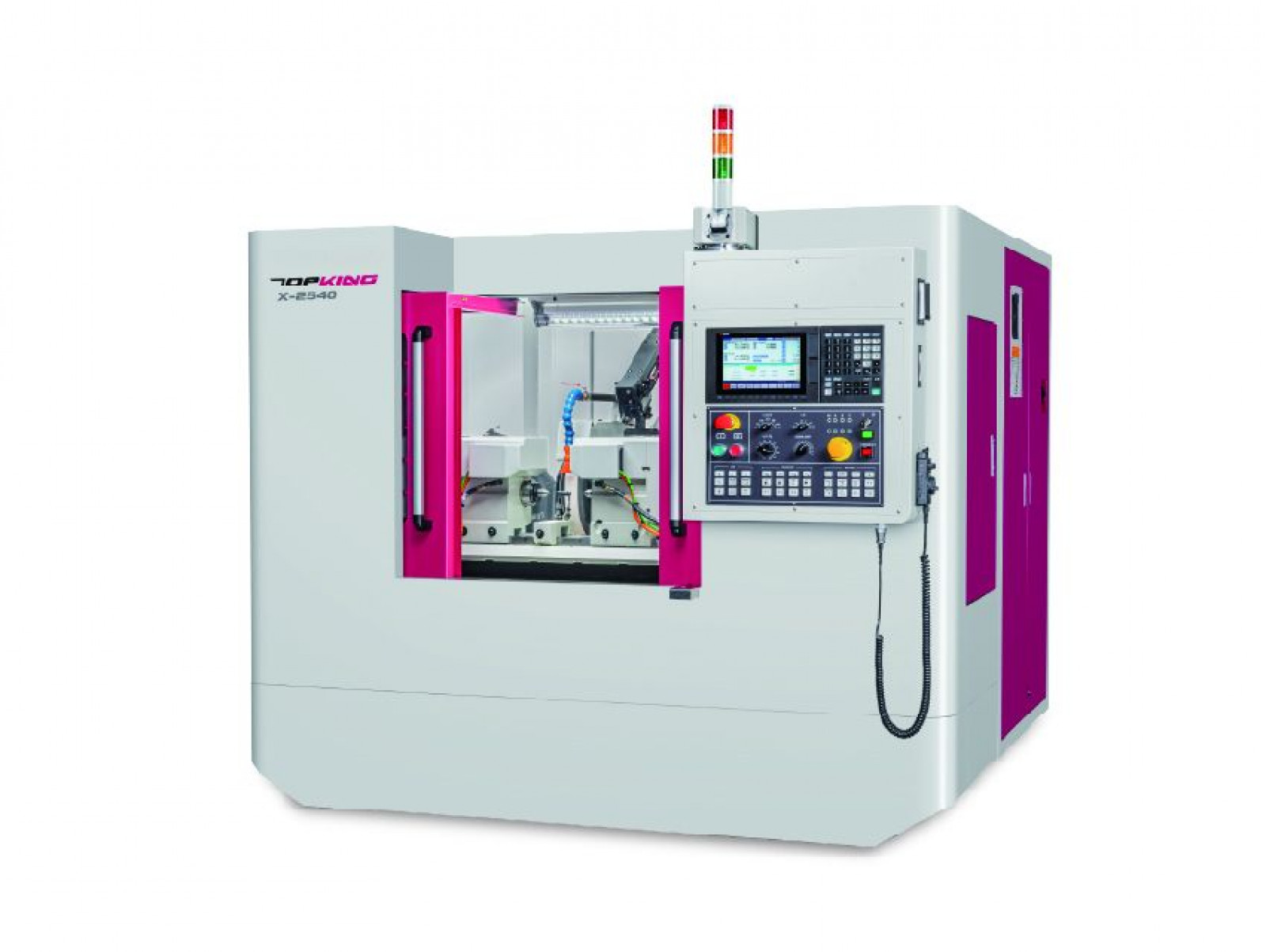

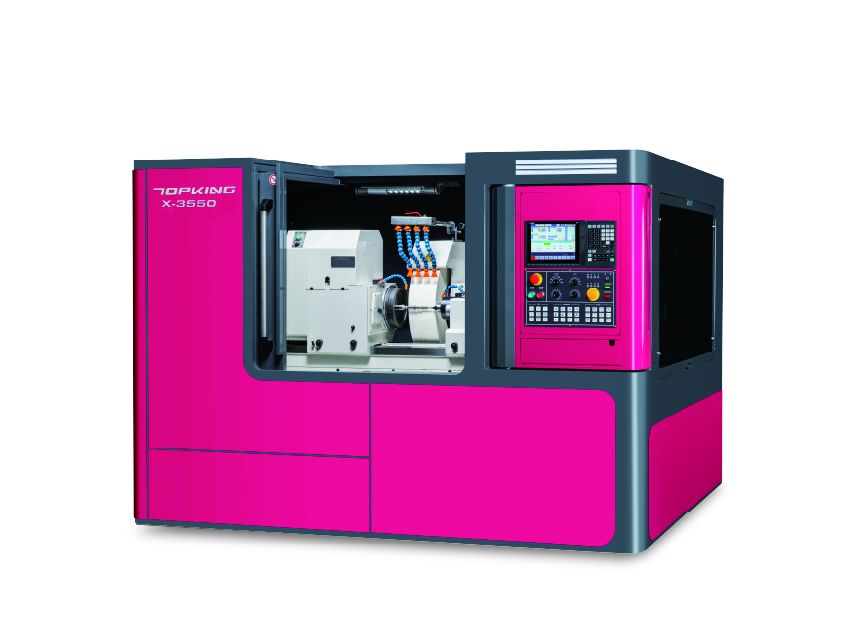

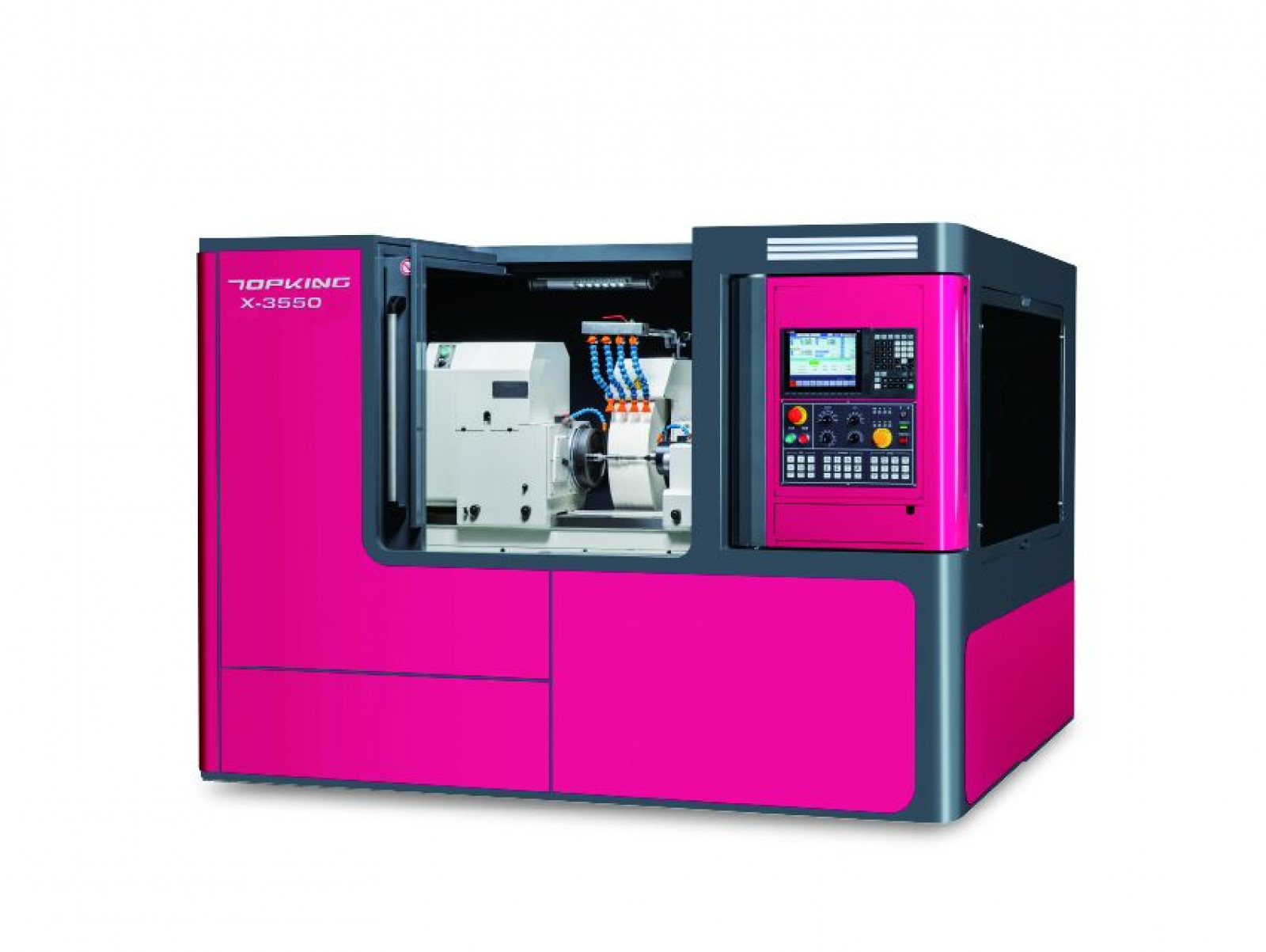

To meet the most demanding machining challenges, TOPKING offers a versatile range of advanced technological options. The LM Series features state-of-the-art Linear Motor drives that eliminate backlash—ideal for high-precision components like hydraulic spools and aerospace parts. For non-round geometries, our CAM Series combines C-axis Direct Drive (DD) motors with synchronized control for the flawless grinding of cams, crankshafts, and eccentric shafts. Additionally, angular-head models like the X-2540A or X-3550P allow for simultaneous O.D. and shoulder grinding in a single setup. Equipped with an intuitive Graphical User Interface (GUI) and ready for full automation integration—including in-process gauging and smart collision protection—TOPKING empowers you to achieve high-efficiency, intelligent production in the era of digital manufacturing.

Se Topking hjemmeside her

Hvad er den forventede leveringstid på en ny maskine?

Leveringstiden varierer afhængigt af maskintype og lagerstatus hos vores leverandører. For lagermaskiner er leveringstiden typisk kort, mens specialbestillinger kan tage længere tid. Vi giver altid et estimat ved forespørgsel.

Tilbyder I faste serviceaftaler?

Ja, vi tilbyder skræddersyede serviceaftaler for at sikre forebyggende vedligehold og maksimal oppetid for dine maskiner. En fast aftale sikrer, at dit udstyr altid kører optimalt. Kontakt os for at høre mere.

Leverer og installerer I maskiner i hele Danmark?

Ja, vi leverer og installerer maskiner i hele landet. For os er en handel først afsluttet, når maskinen står korrekt placeret hos dig og er klar til brug.

Vores egen serviceteknikere sørger for professionel opstilling, tilslutning og indkøring. Dette inkluderer en fuld funktionstest samt grundig instruktion til dig og dine medarbejdere i maskinens brug. Det er din garanti for en problemfri opstart og sikker drift fra dag ét.
